Gas Ignition And Safety Protection System

Basic Types and Parameters

Power Type: AC, DCVoltage: 6V, 12V, 24V, 80V, 98V, 120V, 220V (customizable based on user requirements)Rated Power: 10W, 20W, 50W, 65W, 160W, 280W, 400W, etc. (customizable based on user requirements)Stable Operating Temperature: above 1100°CMain Types of Igniters: NTP-12 series, NTP-24 series, NTP-120 series, NTP-220 series

Scope of Application

Suitable for various equipment requiring automatic ignition, including: gas stoves/water heaters/dryers/ovens/furnaces/incubators/heating systems/non-electric air conditioners/baking ovens/household and commercial boilers/infrared radiation sources and other gas appliances, as well as charcoal grills and heaters.

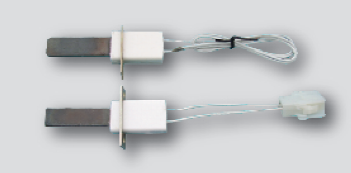

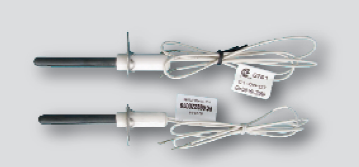

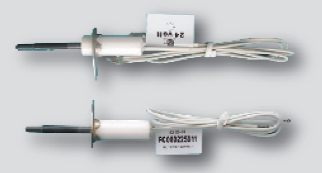

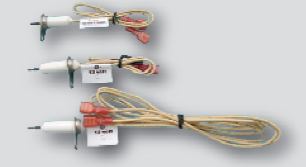

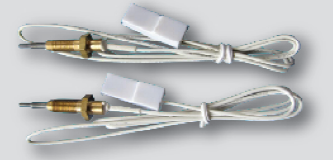

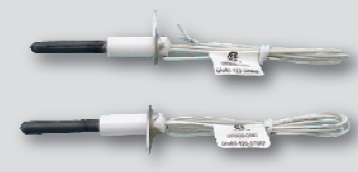

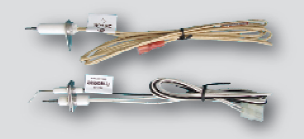

Structural Features

Power Leads: Can be designed according to customer installation and wiring requirements, either as a single-lead connection (with metal grounded casing) or double-lead type (casing usually made of aluminum oxide insulating ceramic).

Base: Ceramic mounting base for low-power igniters can use 95% alumina ceramic components. For high-power igniters, usually choose better thermal shock resistant Dongqing stone ceramic components.

Leads/Wires: Made of high-temperature resistant wires. Commonly use 200°C high-temperature wire (FEP), 250°C high-temperature wire (PFA), 450°C high-temperature wire (mica glass fiber). Other specifications can also be customized based on user requirements.

Mounting Flange: Generally made of stainless steel or other carbon steel materials.

Quality control:

Henan ZG Industrial Products Co. Ltd. was founded by specialists of leading industrial institutes in Zhengzhou city, China in 2007.

Our company manufactures, complex develops, supplies, introduces and upgrades products from technical ceramics, heating elements and graphite. We provide services for the manufacture, repair and renovation of special high-temperature equipment as well. In addition, our company provides services for R&D, analytical research within our specialization.

We have established contacts with the world’s leading and domestic manufacturers of ceramic and heating elements, leading industry institutes and track all the latest trends in this field.

The introduction of ceramic and heating elements in production requires a special study of each case, taking into account technological and market nuances. The specialists of our company have all the necessary experience for the most complete solution of the customer’s problem and developing an optimal offer.

Among our customers are chemical, petrochemical, oil refining, oil and gas, mining, mining and concentrating, paper, metallurgy, power, electrical, electronic, glass and other industries.

We will be glad to answer all your questions.
