Industrial Grade 1800°C Laboratory Temperature Instrument Heating Element Mosi2 Heating Elements

Ask Lasest Price
Price :	5/usd/pcs
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	1000/pcs/month
Delivery Time :	3workdays

Add to Cart

Product Details
Company Profile

Industrial Grade 1800°C Laboratory Temperature Instrument Heating Element Mosi2 Heating Elements

Products Description

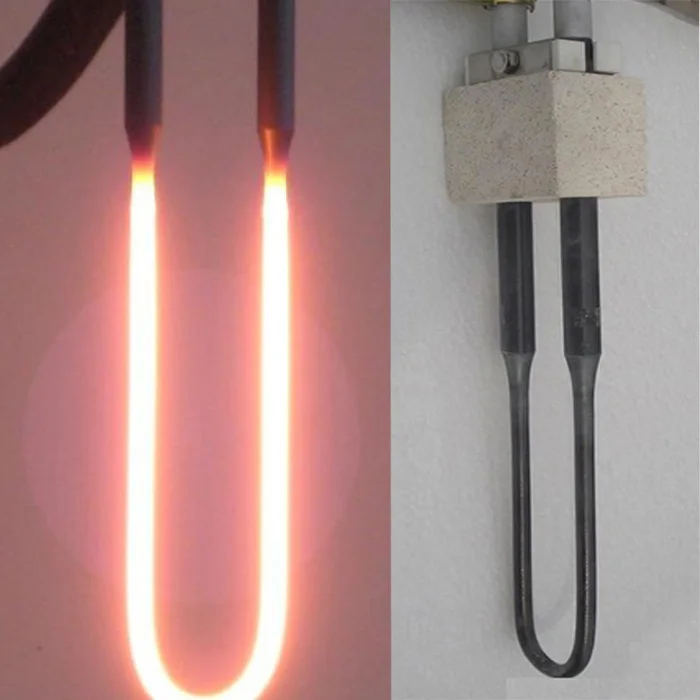

Mosi2 Heater Rod Introduction:

1).Mosi2 Heater Rod is a kind of resistance heating element made from Molybdenum Disilicide. It can be exerted under the high temperature of the oxidated atmosphere.
2).Mosi2 Heater Rod has the unique function of high temperature anti-oxidation. Under the oxidated atmosphere, the maximum temperature of MoSi2 heating element is 1800°C.

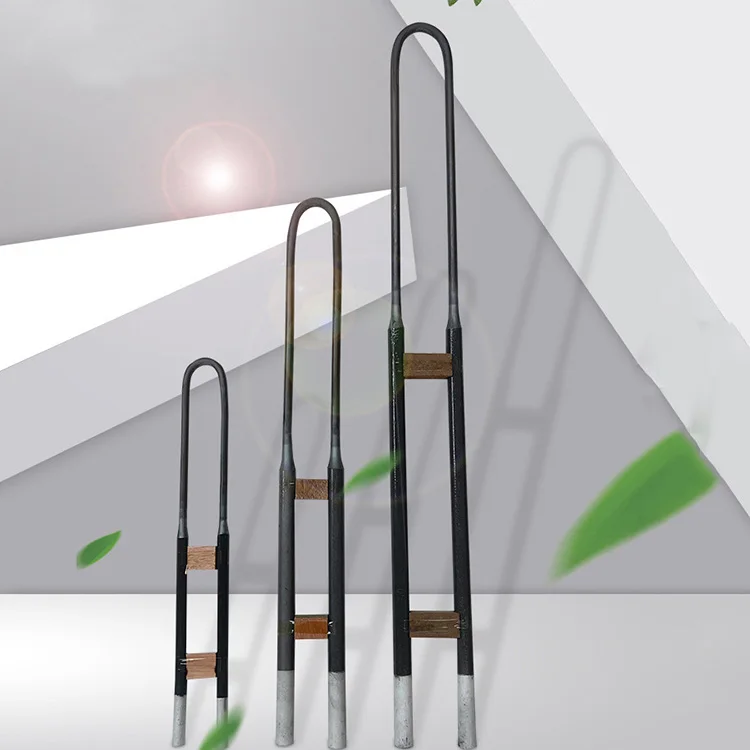

3). Mosi2 Heater Rod shape: U-type, W-type, right-angle as well as circular type.
4).The temperature of Mosi2 Heater Rod is from 1300°C to 1800°C, which isuniversally applied to the field of metallurgy, glass, ceramics, magnetic matrials, refractory materials, crystals, electron devices and kiln etc. It is the ideal heating element of high temperature anealing furnaces.
5). Mosi2 Heater Rod:U type 1700 6/12mm ;U type1700 9/18mm;W type 1700 6/12mm ; W type 1700 9/18mm; U type 1800 3/6mm; U type 1800 6/12mm; U type 1800 9/18mm

Industrial Grade 1800°C Laboratory Temperature Instrument Heating Element Mosi2 Heating Elements

Product Paramenters

Operation Temperature of MoSi2 Heater Rod
Atmosphere	1700 Type	1800 Type
Air	1700℃	1800 ℃
N2	1600℃	1700 ℃
He	1600℃	1700℃
-80°C Dry H2	1150℃	1150℃
-20°C Wet H2	1450℃	1450℃
10%CO2, 50%CO, 15%H2	1600℃	1700℃
40%CO2, 20%CO	1400℃	1450℃
Cracked and Partially Burnt Ammnia	1400 ℃	1450℃

Standard diameter of MoSi2 Heater Rod

M1700 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24
M1800 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24
M1900 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24

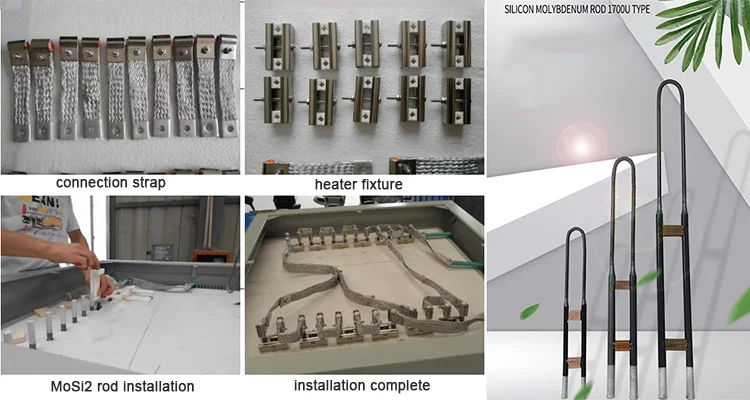

Installation Instructions

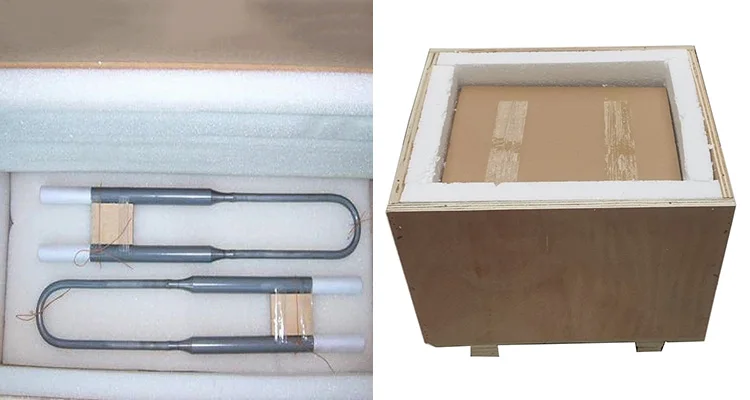

Product packaging

How to pack MoSi2 Heater Rod ?

Our MoSi2 Heater Rod will be packaged as follows (from inside to outside)

1. The 1st layer : soft sponge

2. The 2nd layer: carton

3. The 3rd layer: foam filling

4. The 4th floor: wooden box
Four layers of packaging to ensure the safety of SUPER MACHINERY Heating element during transporation

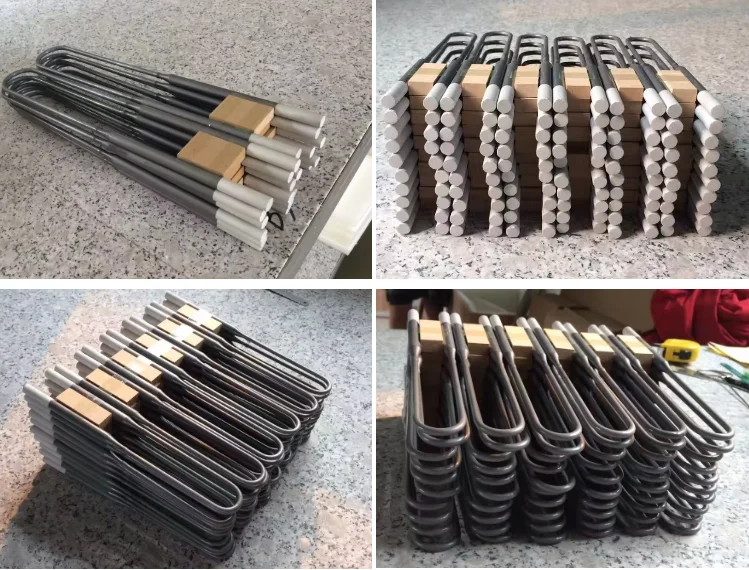

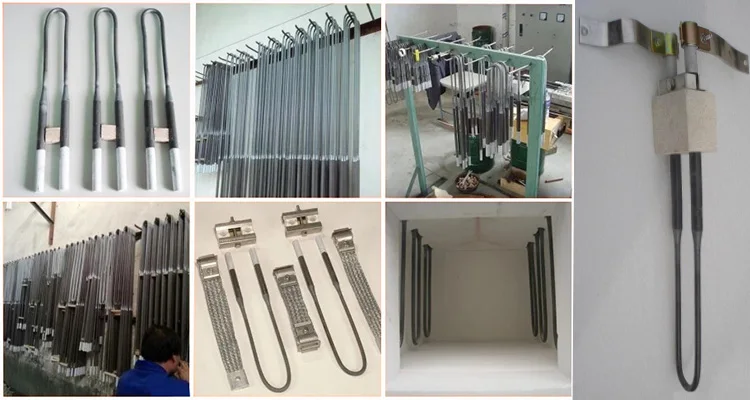

Product Show

Please tell us the following data ofMosi2 Heater Rod when send enquiry to us :

D2 = the diameter of hot zone ?
D1 = the diameter of cold zone ?
L2 = the length of hot zone ?
L1 = the length of cold zone ?
A= the shank spacking

And How many pcs ?
A: Please make sure the 'shipping address' is your confirmed address.
B: We do check everything in good condition before we ship your parcel out.
C: We will process your order ASAP after payment is confirmed.

FAQ

1.Which procedure to secure your Mosi2 Heater Rod Quality?
Our company has own research & development and production base, the MoSi2 heater have been calibrate by central laboratory professionals before before they leaves the factory, ensure the accuracy of test results and authority.

2. How about your company product after-sales service system?
Product after-sale guarantee period is 12 months,and we can provide lifetime repair guarantee.We have agents in some
countries,they can provide door-to-door service.If there is no agent,our professional pre-sales and after-sales department can reply you within 24 hours for any technical problems.

3. Our country's power supply and plug are different, how do you solve it?
We can according to different countries and the power plug, equipped with transformer and plug that in accordance with your local
requirement.

4. Payment methods?
T/T, L/C, D/P and so on

5. Packing method?
Our furnace is pakced with strong export wooden box packaging

6. Main export market?
Now our products have been exported to North America, Europe, southeast Asia, South America and other countries.
