Customizable 1800 degree MoSi2 muffle furnace heating element

Ask Lasest Price
Price :	5/usd/pcs
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	1000/pcs/month
Delivery Time :	3workdays

Add to Cart

Product Details
Company Profile

Customizable 1800 degree MoSi2 muffle furnace heating element

Product Description

MoSi2 heaters are resistive heating elements based on molybdenum disilicide. The temperature generated by MoSi2 goes as high as 1700~1800°C in oxidation atmosphere. They can be widely used in such applications as sintering and heat treatment on electronic ceramics, structural ceramics, magnetic materials, flameproof materials, glass, metallurgy, etc.

Atmosphere	The Maximum Using Temperature of Element
Atmosphere	1700 Grade	1800 Grade
NO2,CO2,O2,Air	1700°C	1800°C
He,Ar,Ne	1650°C	1750°C
SO2	1600°C	1700°C
CO,H2	1500°C	1600°C
WetH2	1400°C	1500°C
DryH2	1350°C	1450°C

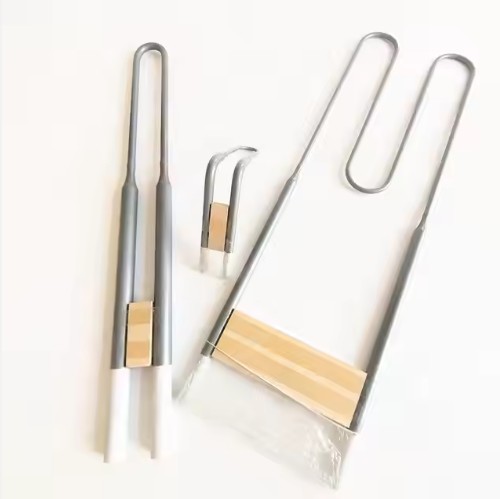

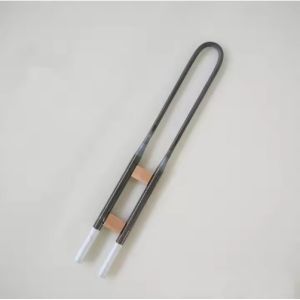

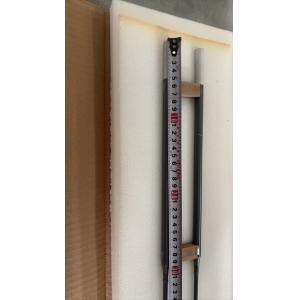

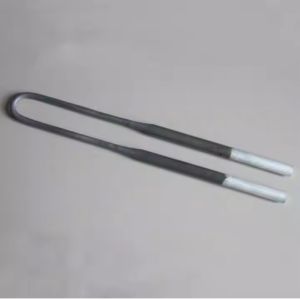

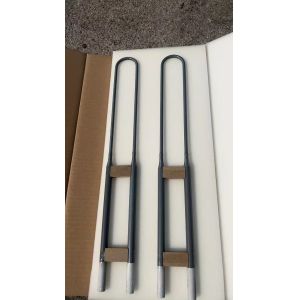

Photo Shows

Customizable 1800 degree MoSi2 muffle furnace heating element

How to order ? Pls provide this informations:

1 Type: rod, U, W, H, spiral and double-spiral types
2 OD,HZ,CZ,OL
3 If type U or type W, please mark terminal distance
4 If you have special requirements about resistance, please inform resistance
5 Quantity

Application

The MoSi2 Heating Elements can be widely used in such applications as sintering and heat treatment on ceramics, magnet, glass, metallurgy, refractory, etc.

Packaging & Shipping

Customizable 1800 degree MoSi2 muffle furnace heating element
